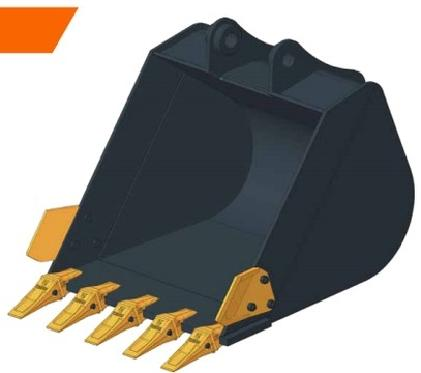

EK01 Earthwork bucket (standard bucket)
Applicable field
It is suitable for excavating and loading light loads such as loose sand and clay.
Adaptable working conditions: loam or loam mixed with crushed stones, planting soil, humus soil, mud, etc
Product Features
●Wide-mouth curved surface design, efficient loading and unloading;
●The shallow pit deep design avoids excessive penetration into the soil layer.
●The layout of the tooth seats is optimized through the design of the topology optimization algorithm;
●It has a long impact resistance life, stable and smooth operation, and reduces equipment energy consumption
Model | Bucket(m³) | Weight(kg) | Outside size(mm) |
12-15T | 0.55-1.0 | 500 | 917*1395*978 |
20-25T | 0.8-1.4 | 920 | 1583*1584*1358 |
30-35T | 1.4-1.9 | 1350 | 1277*1816*1863 |
