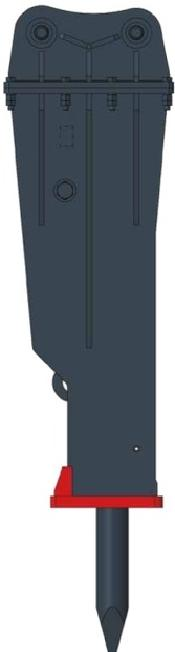

B03 Silent breaker
Applicable field
It is suitable for construction areas that are sensitive to noise and have environmental protection requirements, such as the construction around schools and hospitals, as well as crushing operations in urban central areas that require night construction
Product Features
● Silent design, significantly reducing noise. With multi-stage shock-absorbing shells and internal sound-absorbing modules, the operating noise is ≤ 85dB (40% lower than traditional models), meeting the urban environmental protection construction standards. ;
●The operation is smooth and stable. It adopts precise hydraulic flow control technology to ensure the stable output of impact energy.
● Highly efficient and worry-free, through a high-frequency and low-amplitude impact strategy, it achieves an efficiency 1.2 to 1.5 times that of traditional equipment in concrete crushing operations.
●Environmentally friendly and energy-saving, intelligent energy-saving technology, emission reduction certification compliance, the first choice for green construction;
● Quality after-sales service and full-cycle guarantee ensure your worry-free construction.
Model | Weight of the main unit(kg) | Total weight(KG) | Total length(mm) | Total width(mm) | Flow(L/min) | Pressure(MPa) | Strike frequency(bpm) | Diameter of the drill rod(mm) |
3-4T | 89 | 158 | 1178 | 230 | 25-50 | 90-120 | 600-1100 | 53 |
6-7T | 156 | 263 | 1373 | 295 | 40-70 | 110-140 | 575-1035 | 68 |
7-9T | 214 | 334 | 1515 | 295 | 50-90 | 120-150 | 460-920 | 75 |
12-15T | 479 | 761 | 1900 | 390 | 80-110 | 150-170 | 400-800 | 100 |
